New release of the application StLinkP is published on GooglePlay.

Support of Stm32F2 series is added.

StmDfuBlue and Core205R Board
Phone connected with board Core205R

For debugging of the application I used board Core205R from company Waveshare with controller Stm32F205RBT6.

The board was purchased with funds from donations which users had done into StLinkP application.

So if you desire that the support of some stm32 series will be added as soon as possible then make donation and vote for series you need on the page of StLInkP application. Or just connect with me via my contacts.

I take a step toward my users.

In application StmDfuUsb starting from release 1.06 you can use FREE coupon for additional firmware uploadings.

Coupon apply activity
Coupon apply activity

You can get one coupon per day. A coupon give you 5 additional firmware uploadings.

See video instruction on youtube.

I think it must be applause here.

These days the level in 10000 installation for the application StLinkP has been overcame.

I thank everyone who help me in the development of this projects. Don't forget to rate the application on GooglePlay and leave feedbacks with any propositions or critics that can help in improving of the applictiation. Also good wishes form you are welcome also. It inspirate me on further work.

With love from Dnipro-river banks. Yaroslav Trymbach:)

New release of the application StLinkP is published on GooglePlay.

New options "connect under reset" is added.

StLinkP main connection under reset
Main activity with new option

Some times debugger St-Lint can't connect to CPU while firmware is running.

It maybe by some reasons. For example firmware can use for some other purposes the pins which debugger use to connect to CPU.

Also fimware can switch microcontroller in some safe energy mode.

In such situations debugger can provoke reset of microcontroller and catch control over it before firmware is start.

In many situation the application StLink make this action automatically if it can't connect normally.

Now you can select option "Connection under reset" and the application will be try connect to microcontroller under reset at once.

New release of the application StLinkP is published on GooglePlay.

The new feature is added. It is SWO monitor.

For opening the activity of SWO monitor you should select the applropriated point of main application menu.

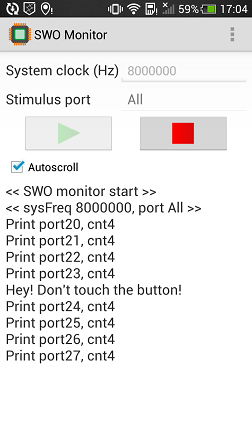

swo monitor
SWO monitor activity

 Now if in your application is realized the sending of debug messages via serial wire output (SWO) then you can monitor it on the screen of you mobile device. Also you can easy to share the collected information with any person you need via communication channels of your phone.
